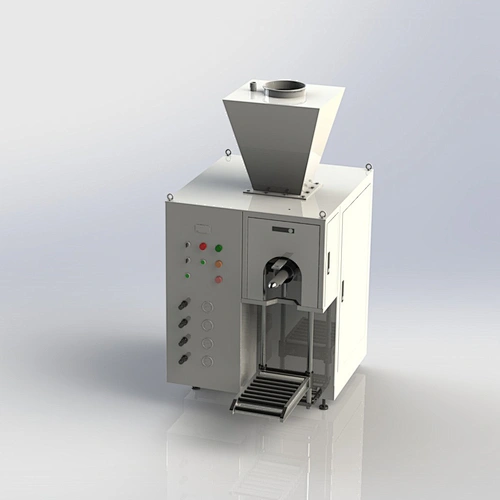

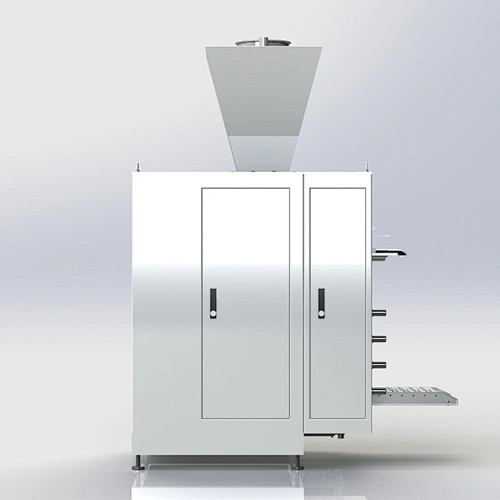

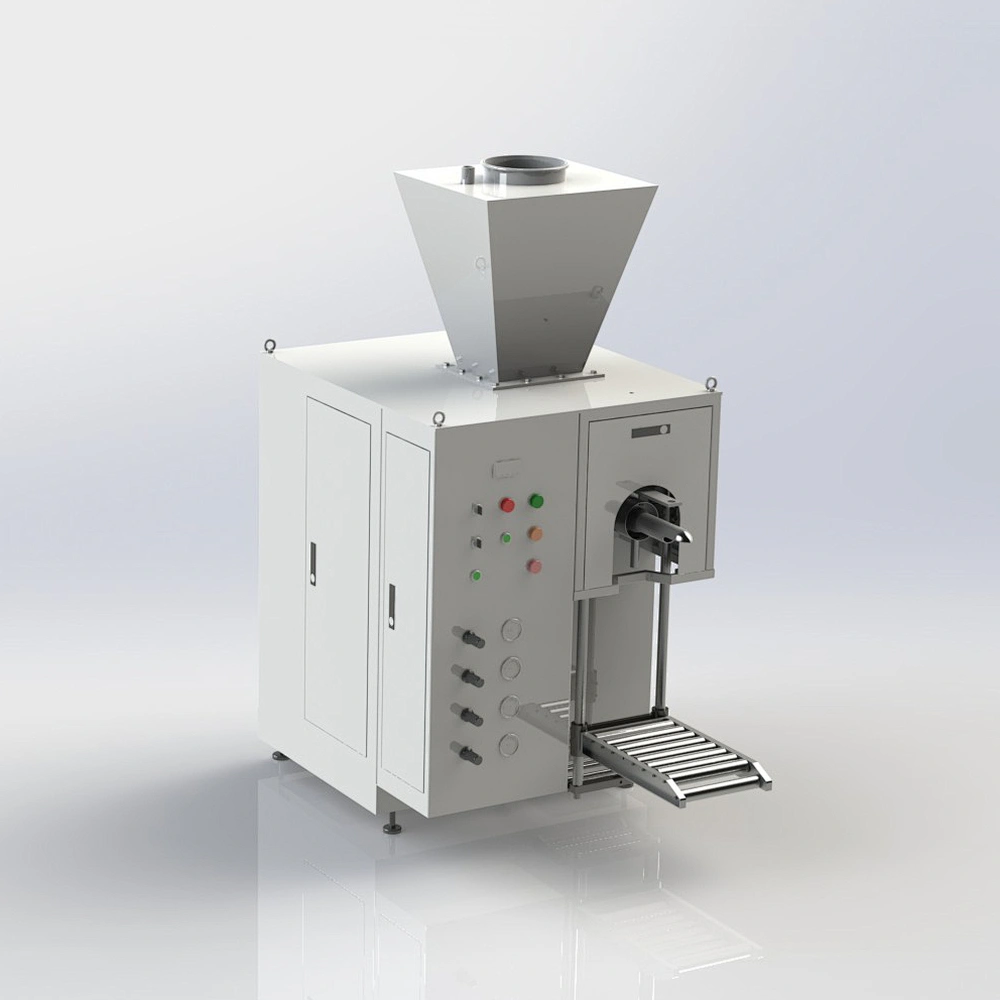

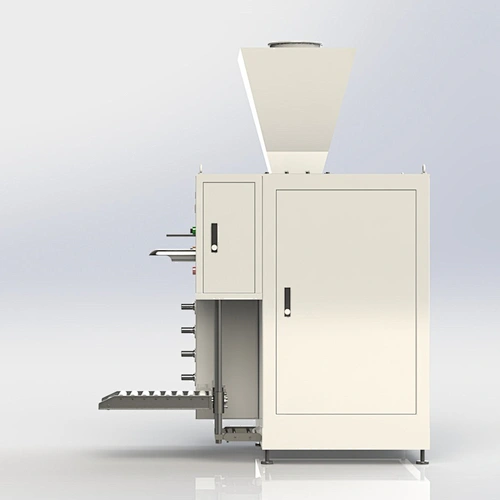

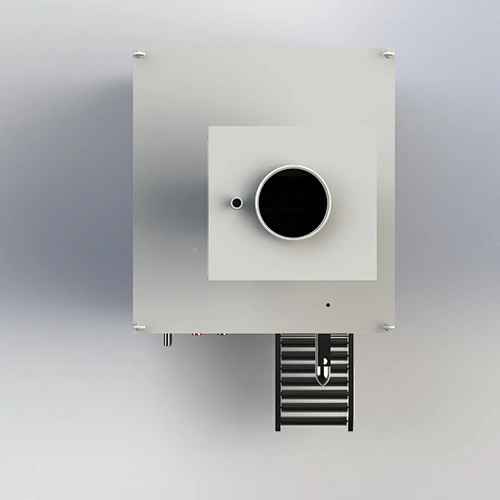

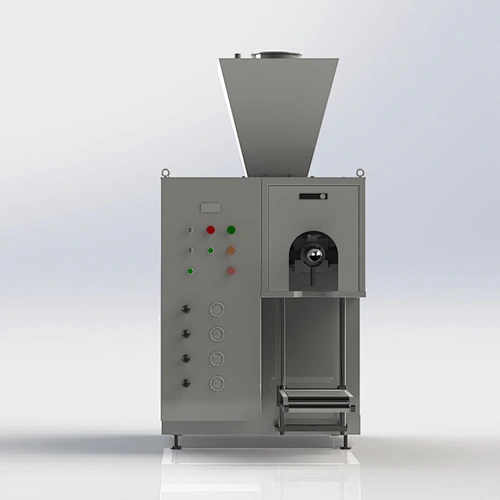

VSBZJ SERIES FULLY-SEALED AUTOMATIC PACKING MACHINE



• Introduction

    VSBZJ-318 Fully-sealed Automatic Packing Machine is developed by Dongguan Vsunny Machinery Co., Ltd. learning from domestic automatic packaging technologies of other powder, combined with its own actual experience in powder production. It is a fully-sealed automatic packing machine focusing on the shortcomings of general packing machines, including powder leakage, heavy dust pollution, inaccurate weighing, small single machine output, etc.


• Specifications

Model	VSBZJ-318
Packaging range	10~50kg (weighing capacity 60kg)
Weighing sensitive quality	0.2kg (200g)
Packaging capacity	120~240bags/hour
Measurement accuracy	Plus or minus 0.2%
Working temperature	-10 to 40degrees
Service voltage	AC380V three-phase 50/60HZ
Power	4KW
Air pressure	4~8kg/cm2 (0.4~0.8mpa), Flow: 25L/min
Dimensions	1520*800*2000mm
Machine Weight	About 400kg
Notes	Packaging capacity is different due to material properties or the supply pressure, only for reference



    VSBZJ-318 Fully-sealed Automatic Packing Machine is mainly applied to 400~6000 mesh (35~2μm) non-metallic mineral powder, especially suitable for ground calcium carbonate, light calcium carbonate, barium sulfate, modified calcium, wollastonite, titanium dioxide, kaolin, talcum, gypsum and other fields.


• Advantages

    1. The packing machine uses the most cutting-edge screw and impeller coaxial structure, showing fast filling speed and large single output.
    2. The micro-gravity sensing weighing structure and high weighing accuracy.
    3. The real-time display of all working statuses during operation; have self-diagnostic functions of instrumentation system.
    4. Focusing on packaging ultrafine powder of 400 mesh or more; few amount of powder leakage; clean and sanitary.
