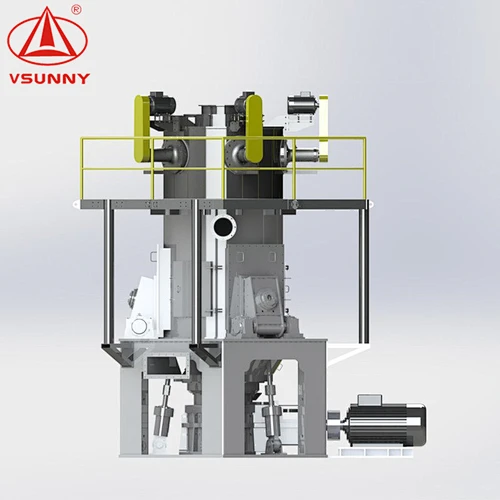

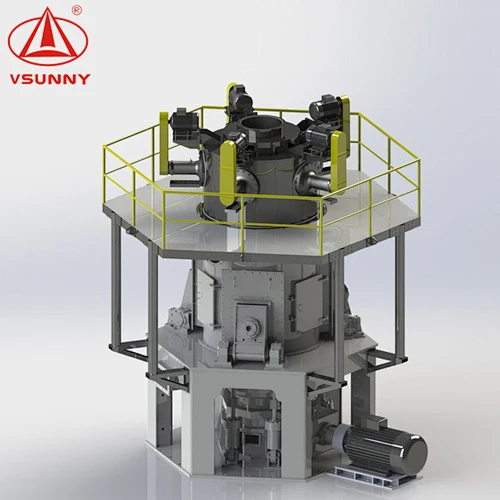

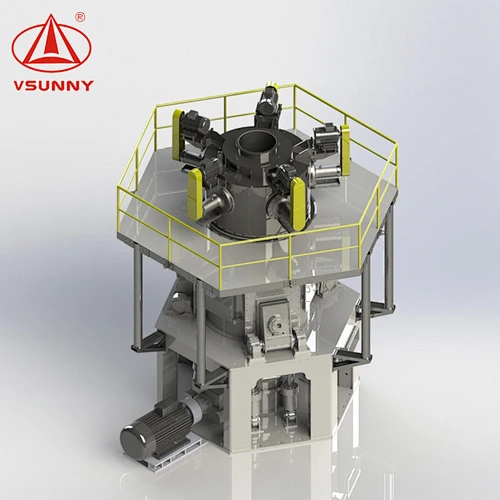

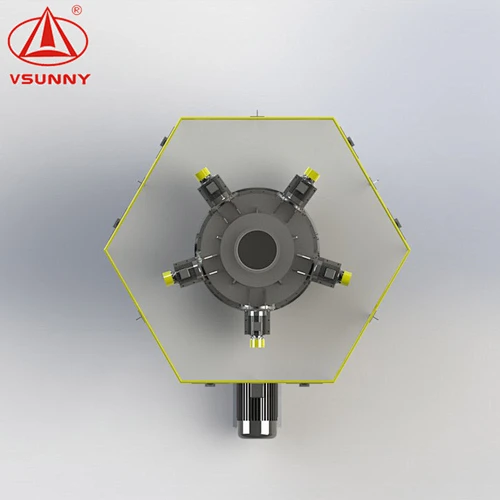

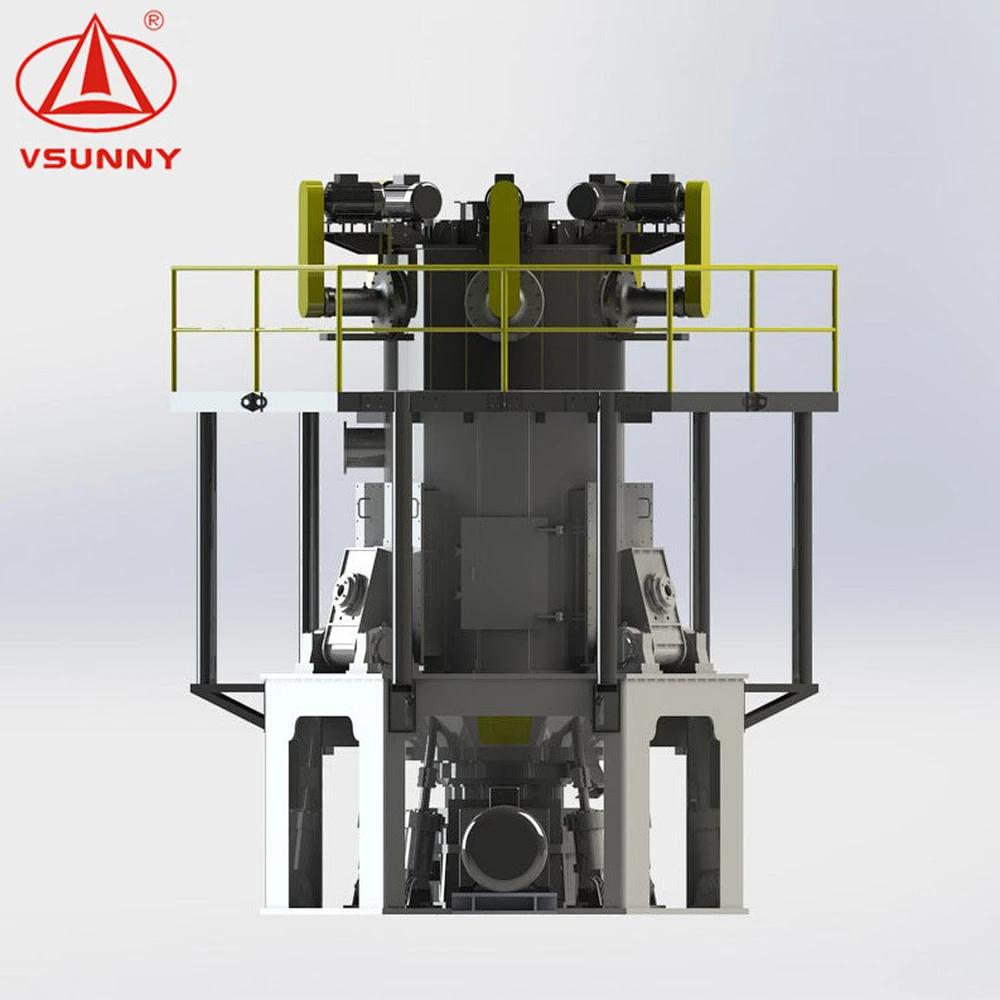

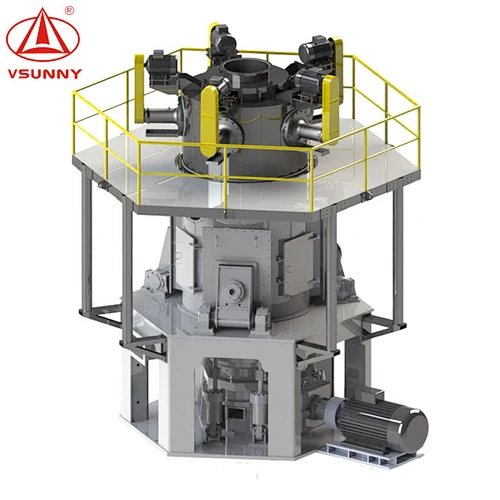

ULTRAFINE VERTICAL ROLLER MILL

Model NO. VSLM-1100H, VSLM-1800H

VSLM Series Ultrafine Vertical Roller Mill was produced by Dongguan Vsunny Machinery Co., Ltd. based on German and Taiwan ultrafine vertical mill technologies. Besides, high-quality wear-resistant parts are used to develop milling equipment which in a real sense marks the first secondary classifying technology in mainland China, having product fineness of 400~3000 mesh.

Quantity

Introduction

VSLM series ultrafine vertical roller mill was produced by Dongguan Vsunny Machinery Co., Ltd. relying on over 10 years of experience in the production of ultrafine powder and based on German and Taiwanese technologies. The ultrafine vertical roller mill has the characteristics of lower energy consumption, higher output, lower noise, lower pollution and its own drying system. It has realized automatic PLC control, on-line fault diagnosis, remote monitoring,technical upgrading of classification and dust collection. The powder product produced by the vertical roller mill has better particle shape, higher fluidity, adjustable and controllable particle size. The percentage of fine powder below 2 micron can reach 10% to 60% (measured by Malvern Mastersizer 3000). And the fineness of product can reach 400 mesh ~ 3000 mesh. If customer consider to use Vsunny’s grinding agents which is specially designed for the different application fields, it will brings the higher added value of the finished product and shorter cost recovery period.

Specifications

Production parameters of VSLM-1100H vertical roller mill (Base on calcite material)

The production of VLSM-1100H ultrafine ground calcium carbonate products, specifications and yield data.
Measurement items	Unit	Ultrafine ground calcium carbonate
Output per hour	Ton	9.0-11.0	6.5-7.0	5.5-6.0	4.5-5.0	3.5-4.0	2.8-3.0
The specific surface area	M²/g	1400±200	2300±200	2900±200	3300±200	3800±300	4800±300
325 mesh remaining amout	%	0.02	0.01	0.01	0.005	0.002	0
Less than 2 μm power	%	18±2	23±2	28±2	33±2	38±2	45±2
Median particle diameter D50	μm	5.6±0.4	4.2±0.3	3.5±0.2	2.9±0.2	2.5±0.2	2.1±0.1
Particle size distribution D97	μm	25.0±2	16.0±1.5	13.0±1	10.5±1	8.5±1	7.0±1
Particle size cut point D100	μm	38.0±4	27.0±3	22.0±3	17.0±2	14.0±2	10.0±2
Energy consumption （main units、blower、air compressor、classifier）	KW/T	48	68	80	96	137	171

Production parameters of VSLM-1800H vertical roller mill (Base on calcite material)

The production of VLSM-1800H ultrafine ground calcium carbonate products, specifications and yield data.
Measurement items	Unit	Ultrafine ground calcium carbonate
Output per hour	Ton	15.0-17.0	10.5-11.5	8.5-9.5	7.0-8.0	5.5-6.5	4.0-4.5
The specific surface area	M²/g	1400±200	2300±200	2900±200	3300±200	3800±300	4800±300
325 mesh remaining amout	%	0.02	0.01	0.01	0.005	0.002	0
Less than 2 μm power	%	18±2	23±2	28±2	33±2	38±2	45±2
Median particle diameter D50	μm	5.6±0.4	4.2±0.3	3.5±0.2	2.9±0.2	2.5±0.2	2.1±0.1
Particle size distribution D97	μm	25.0±2	16.0±1.5	13.0±1	10.5±1	8.5±1	7.0±1
Particle size cut point D100	μm	38.0±4	27.0±3	22.0±3	17.0±2	14.0±2	10.0±2
Energy consumption （main units、blower、air compressor、classifier）	KW/T	44	65	78	93	114	165
